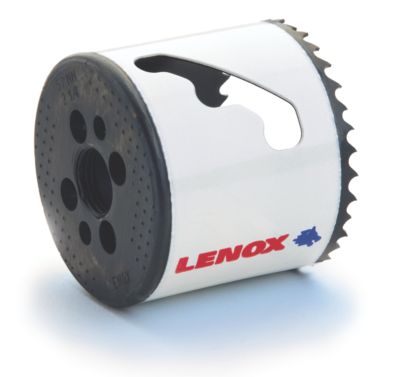

    BI-METAL HOLE SAWS
    Play Video

    BI-METAL HOLE SAWS

    Long Lasting, Fast Cutting and Versatile

    DURABLE
    TUFF TOOTH™     design is reinforced to cut stronger and last longer

    LONG LASTING
    Patented VARI-TOOTH® design resists tooth strippage

    STAYS SHARP
    High speed steel teeth resist breaking and offer extended life

    WITHSTANDS HIGH TORQUE
    Thick backing plate with holes for drive pins resists damage due to high torque

    SPECIFICATIONS

    DIAMETER1 PER BOX 1 PER BLISTER SEAL ARBORED
    1-PACK     		PIPE TAP PIPE ENTRANCE USE ARBOR
    INMMPROD NO PROD NO PROD NO IN MM IN MM SNAP-BACKSTANDARD
    9/16 14.3 300099L — 122089A — — — — 5L 1L, 4L or 5L
    5/8 15.9 3001010L 12163K10L 1220910A — — — — 5L 1L, 4L or 5L
    11/16 17.5 3001111L — 1221011A — — — — 5L 1L, 4L or 5L
    3/4 19.1 3001212L 12164K12L 1221112A 1/2 12.7 3/8 9.5 5L 1L, 4L or 5L
    25/32 19.8 3009820MMHS 12195K20MMHS 1221220MMA — — — — 5L 1L, 4L or 5L
    13/16 20.6 3001313L — 1221313A — — — — 5L 1L, 4L or 5L
    7/8 22.2 3001414L 12165K14L 1221414A 3/4 19.1 1/2 12.7 5L 1L, 4L or 5L
    15/16 23.8 3001515L — 1221515A — — — — 5L 1L, 4L or 5L
    1 25.4 3001616L 12166K16L 1221616A — — — — 5L 1L, 4L or 5L
    1-1/16 27.0 3001717L 12167K17L 1221717A — — — — 5L 1L, 4L or 5L
    1-1/8 28.6 3001818L 12168K18L 1221818A 1 25.4 3/4 19.1 5L 1L, 4L or 5L
    1-3/16 30.2 3001919L — 1221919A — — — — 5L 1L, 4L or 5L
    1-1/4 31.8 3002020L 12169K20L 1222020A — — — — 2L, 6L 2L, 3L or 6L
    1-5/16 33.3 3001212L — 1222121A — — — — 2L, 6L 2L, 3L or 6L
    1-3/8 34.9 3002222L 12170K22L 1222222A — — 1 25.4 2L, 6L 2L, 3L or 6L
    1-7/16 36.5 3002323L — 1222323A — — — — 2L, 6L 2L, 3L or 6L
    1-1/2 38.1 3002424L 12171K24L 1222424A 1-1/4 31.8 — — 2L, 6L 2L, 3L, 6L or 7L
    1-9/16 39.7 3002525L — 1222525A — — — — 2L, 6L 2L, 3L, 6L or 7L
    1-5/8 41.3 3002626L 12172K26L 1222626A — — — — 2L, 6L 2L, 3L, 6L or 7L
    1-11/16 42.9 3002727L — 1222727A — — — — 2L, 6L 2L, 3L, 6L or 7L
    1-3/4 44.5 3002828L 12173K28L 1222828A 1-1/2 38.1 1-1/4 31.8 2L, 6L 2L, 3L, 6L or 7L
    1-13/16 46.0 3002929L — 1222929A — — — — 2L, 6L 2L, 3L, 6L or 7L
    1-7/8 47.6 3003030L 12174K30L 1223030A — — — — 2L, 6L 2L, 3L, 6L or 7L
    2 50.8 3003232L 12175K32L 1223132A — — 1-1/2 38.1 2L, 6L 2L, 3L, 6L or 7L
    2-1/16 52.4 3003333L — 1223233A — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-1/8 54.0 3003434L 12176K34L 1223334A — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-1/4 57.2 3003636L 12177K36L 1223436A 2 50.8 — — 2L, 6L 2L, 3L, 6L or 7L
    2-5/16 58.7 3003737L — 1223537A — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-3/8 60.3 3003838L 12178K38L 1223638A — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-1/2 63.5 3004040L 12179K40L 1223740A — — 2 50.8 2L, 6L 2L, 3L, 6L or 7L
    2-9/16 65.1 3004141L — 1223841A — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-5/8 66.7 3004242L 12180K42L 1223942A 2-1/2 63.5 — — 2L, 6L 2L, 3L, 6L or 7L
    2-11/16 68.3 3004343L 12181K43L — — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-3/4 69.9 3004444L 12181K44L 1224044A — — — — 2L, 6L 2L, 3L, 6L or 7L
    2-7/8 73.0 3004646L — 1224146A — — — — 2L, 6L 2L, 3L, 6L or 7L
    3 76.2 3004848L 12183K48L 1224248A — — 2-1/2 63.5 2L, 6L 2L, 3L, 6L or 7L
    3-1/8 79.4 3005050L 12184K50L 1224350A — — — — 2L, 6L 2L, 3L, 6L or 7L
    3-1/4 82.6 3005252L 12185K52L 1224452A 3 76.2 — — 2L, 6L 2L, 3L, 6L or 7L
    3-3/8 85.7 3005454L — 1224554A — — — — 2L, 6L 2L, 3L, 6L or 7L
    3-1/2 88.9 3005656L 12186K56L 1224656A — — — — 2L, 6L 2L, 3L, 6L or 7L
    3-5/8 92.1 3005858L 12187K58L 1224758A — — 3 76.2 2L, 6L 2L, 3L, 6L or 7L
    3-3/4 95.3 3006060L — 1224860A 3-1/2 85.7 — — 2L, 6L 2L, 3L, 6L or 7L
    3-7/8 98.4 3006262L — 1224962A — — — — 2L, 6L 2L, 3L, 6L or 7L
    4 101.6 3006464L 12188K64L 1225064A — — — — 2L, 6L 2L, 3L, 6L or 7L
    4-1/8 104.8 3006666L 12189K66L 1225166A — — 3-1/2 85.7 2L, 6L 2L, 3L, 6L or 7L
    4-1/4 108.0 3006868L 12190K68L 1225268A 4 95.3 — — 2L, 6L 2L, 3L, 6L or 7L
    4-3/8 111.1 3007070L — 1225370A — — — — 2L, 6L 2L, 3L, 6L or 7L
    4-1/2 114.1 3007272L 12191K72L 1225472A — — — — 2L, 6L 2L, 3L, 6L or 7L
    4-5/8 117.5 3007474L — — — — 4 95.3 2L, 6L 2L, 3L, 6L or 7L
    4-3/4 120.7 3007676L 12192K76L 1225576A 4-1/2 108.0 — — 2L, 6L 2L, 3L, 6L or 7L
    5 127.0 3008080L 12193K80L — — — — — 2L, 6L 2L, 3L, 6L or 7L
    5-1/2 139.7 3008888L — — — — — — 2L, 6L 2L, 3L, 6L or 7L
    6 152.4 3009696L 12194K96L — — — — — 2L, 6L 2L, 3L, 6L or 7L

    WARRANTY

    LENOX warrants to the original owner that its products are free from defects in material and workmanship for the following periods from the date of the original purchase: Hand Tools are warranted for the anticipated life of the tool; torches and torch accessories are warranted for three years. Please provide proof of date of purchase when making claim. All other products are covered under our manufacturer′s warranty which guarantees the products to be free from defects in material and workmanship for a period of 90 days. This warranty does not apply to product that has been damaged as a result of improper maintenance, accident or other misuse, or which fails to operate due to normal wear and tear. This warranty is void if the product is repaired or modified in any way by anyone other than LENOX. LENOX makes no other warranties, express or implied, concerning the product or the merchantability or fitness thereof for any purpose. In no event shall LENOX be liable for incidental or consequential damages.
